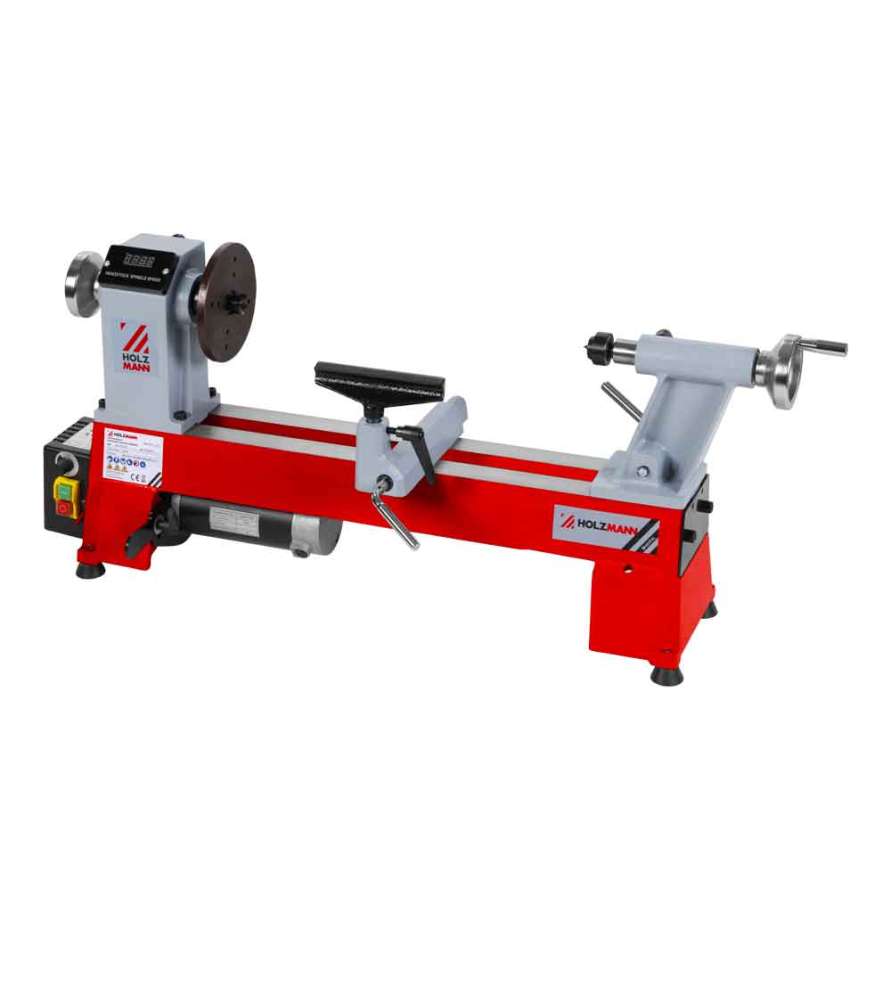

This Holzmann D460FXL wood lathe can turn workpieces up to 457 mm and 300 mm diameter.

Highlights of the D460FXL:

• Rectified cast bench with good rigidity and stability while absorbing vibrations.
• An electronic variable speed drive with 3 bearings allows the speed to be continuously varied from 650 to 3800 rpm.

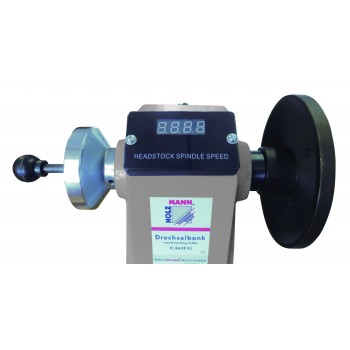

• Digital display of speed.
• Powerful engine combined with 3 bearings ensures optimal torque during machining.
• M33 spindle and Morse tapered headstock 2 for mounting the claw or counter / rotating tip.
• Possibility of extending the bench with the optional cast iron extender.

Holzmann wood lathe delivered with: Tray - Claw point - Tool holder - Counter-point - Service keys - Operating instructions.

Technical specifications of Holzmann D460FXL:

• W x W x H mm: 830 x 200 x 400
• Useful dimensions mm: 250 x 445
• Number of speed ranges: 3 + dimmer (650-1400 + 1250-2800 + 1600-3800)
• RPM control: from 650 to 3800
• ø over the bench mm: 300 = height tips 153 mm
• Distance between points mm: 460
• Thread cone jaw MK2 / 10: M33
• Mobile doll cone mors MK2: 10
• Tray ø mm: 76
• Pin hole diameter: 12 mm
• Tool holder (length) mm: 150
• Engine power: 500W
• Weight without extension kg: 33
