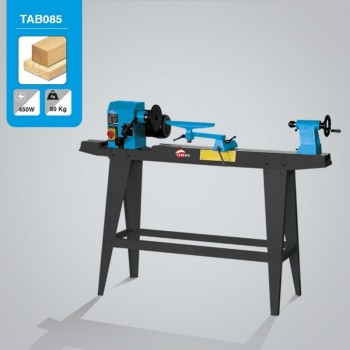

This Leman TAB085 wood lathe features a quiet and durable 450W asynchronous motor!

This machine is also equipped with a steel base, stable and rigid!

The advantages of the Leman TAB085 wood lathe:

• Bench made of cast iron with an extension positioned behind the head, pierced to be fixed on the base (or on a bench).
• The gearshift is automatically done in steps, without the need to touch the belt.
• Cast steel head with 90 ° positionable camber for machining large diameter parts off the bench, and 180 ° for a more comfortable turning position using the tool holder on the extension of bench.

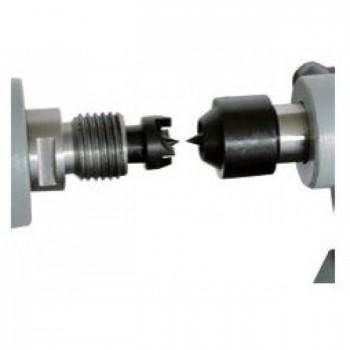

• Fixed doll in CM2 and threaded drive spindle M33x3,5. It is equipped with a claw tip and a 150 mm tray.
• 300 mm cast iron tool support, adjustable in all positions thanks to its articulated cast iron arm. Positioning on the bench by eccentric clamping.
• Mobile cast iron doll, positionable on the bench by eccentric clamping. It is equipped with a rotating counter-tip in CM2, adjustable to a depth of 50 mm by a crank.
• Fixed doll and mobile head pierced at 9.5 mm to dislodge the tools (flush piece provided), and for the passage of a drill bit or a drill bit.

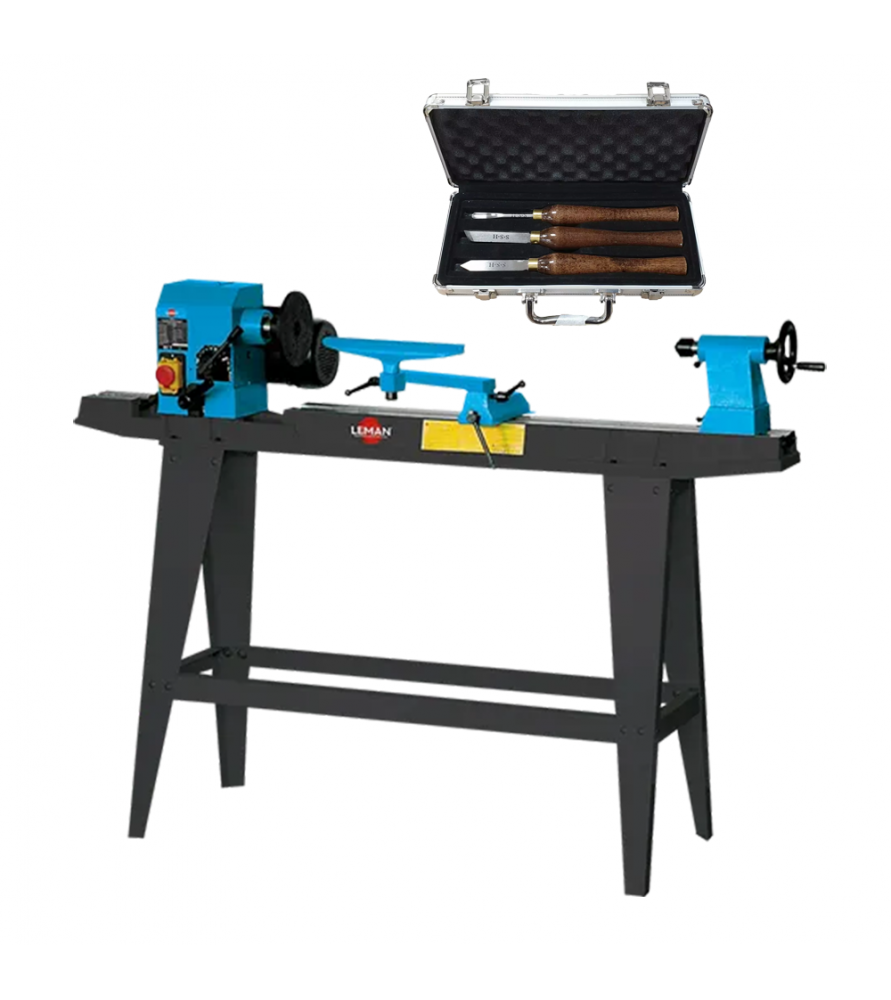

The Leman TAB085 wood lathe comes with: the base, the whole tool support, 1 150 mm tray, 1 claw point, 1 rotating counter-point, 1 hunt part, keys and instructions for use.

Leman TAB085 wood lathe specifications:

• Engine power (230 V): 450 W
• Overall dimensions (L x W x H) 1520 x 480 x 1130 mm
• Number of speeds 10
• Speed ​​of rotation: 500 to 2000 rpm
• Distance between points 850 mm
• Diameter above the bench 305 mm
• Length of the tool holder 300 mm
• Position of the head 0 ° -60 ° -90 ° -120 ° -180 °
• M33x3,5 drive spindle
• Cone of the fixed doll CM2
• Cone of the CM2 mobile doll
• Drilling of the mobile doll Diam.9,5 mm
• Weight: 80 kg
• Packing (mm) 1380 x 330 x 370
• Gross weight 85 kg
