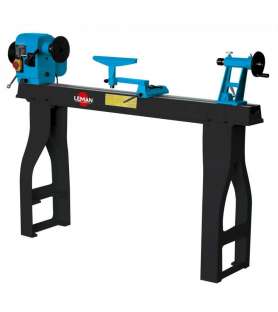

The Leman TAB110 wood lathe is equipped with a powerful 1100W asynchronous motor, silent and enduring.

This engine is placed at the back of the head so that it does not interfere when shooting large diameters.

The advantages of the Leman TAB110 wood lathe:

• Cast iron base, stable and aesthetic
• Bench made of cast iron, pierced to be fixed on the base (or on a bench)
• placed at the back of the head so that it does not interfere when shooting large diameters
• Cast steel head with metal camber, positionable at 90 ° for machining large diameter parts out of the bench, and at 180 ° while moving it for a more comfortable turning position using the mounting bracket tool at the end of the bench
• Fixed doll in CM2 and threaded drive spindle M33x3.5. It is originally equipped with a claw tip and a 150 mm tray
• 300 mm cast iron tool support, adjustable in all positions thanks to its articulated cast iron arm. Positioning on the bench by eccentric clamping

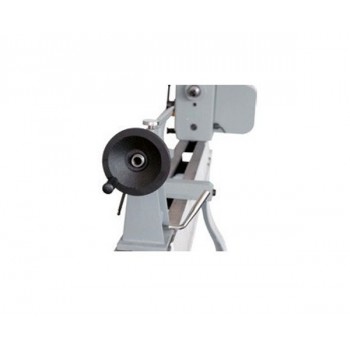

• Mobile cast iron doll, positionable on the bench by eccentric clamping. It is equipped with a rotating counterpart in CM2, adjustable to a depth of 50 mm by a crank handle
• Fixed doll and mobile doll pierced to 10 mm to be able to dislodge the tools (hunting part provided), and for the passage of a drill bit or a drill bit

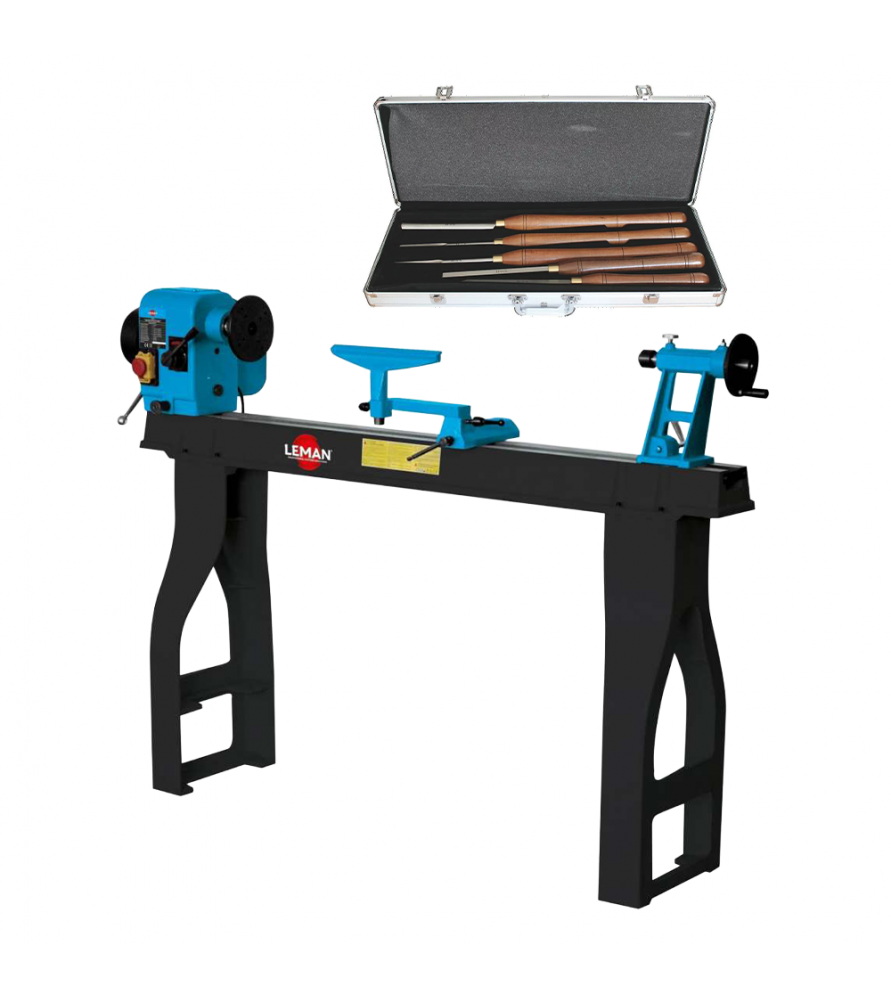

The machine is delivered with: the base, the whole tool support, 1 150 mm tray, 1 claw point, 1 rotating counter-point, 1 hunting piece, keys and instructions for use.

Technical characteristics of the Leman TAB110 wood lathe:

• Motor power (230V-50Hz): 1100 W - 1.5 HP
• Overall dimensions (LxWxH): 1700 x 420 x 1180 mm
• Bench height: 890 mm
• Number of speeds: 10
• Speed ​​(Variable): 500 to 2000 rpm
• Distance between points: 1100 mm
• Diameter above the bench: 400 mm
• Length of the tool support: 300 mm
• Position of the head: 0 ° - 60 ° - 90 ° -120 ° - 180 °
• Drive spindle: M33 x 3.5
• Cone of the headstock: CM2
• Cone of the mobile doll: CM2
• Drilling of the headstock: ø 10 mm
• Net weight: 130 kg
