Wood lathe with speed variator Holzprofi MC1420VF

1,165.00 € Tax included

Including €2.50 for ecotax

Reference: HJMC1420VF

The bench of this wood lathe Holzprofi MC1420VF is cast iron which eliminates all vibrations when working even on parts with high unbalance.

Quantity
Factory Shipping, delivery time 5-8 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

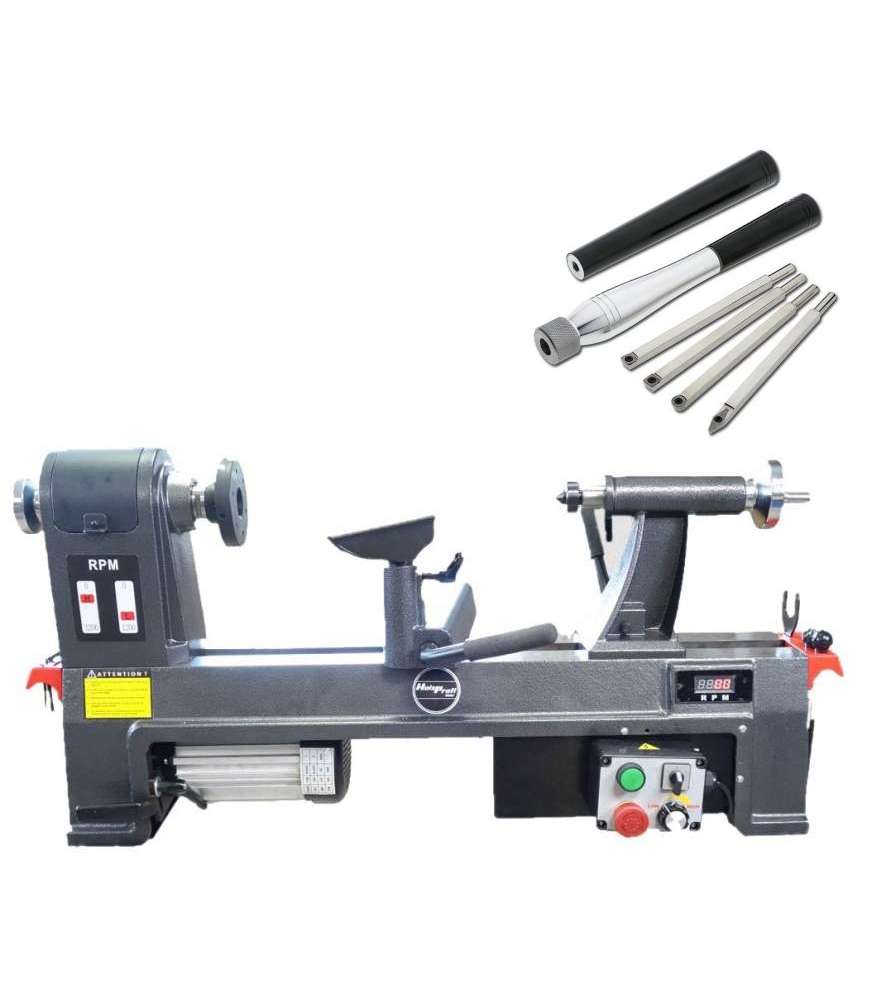

The Holzprofi MC1420VF wood lathe has adjustable frequency drive speeds!

  • The bench of this wood lathe is cast iron which eliminates all vibrations when working even on parts with great unbalance.
  • The speed is adjustable by frequency converter from 0 to 4000 rpm.
  • The 2 pulleys guarantee the right torque at the right speed.
  • The lathe has an eccentric locking on a doll and a tool holder.
  • It offers the possibility of working with a bench extension and the fixed spindle shaft pierces right through.
  • Bore CM2 and mounting 2 maintenance free ball bearings.

The Holzprofi MC1420VF wood lathe is supplied with a flywheel, a plate, a feed dog and a rotating counter-tip.

Technical characteristics of Holzprofi MC1420VF wood lathe:

  • Bench: gray cast iron
  • Speeds range: 0 to 1200rpm; 0 to 3200rpm
  • Rotation speed change: DELTA type frequency inverter and 2 bearings
  • ø over the bench mm: 355
  • Height of the point above the bench mm: 177.5
  • Distance between points mm: 510
  • Nose Brooch: M33
  • Cone brooch and moving doll: CM2
  • Diameter hole in the spindle: 10
  • Tray ø mm: 102
  • Tool holder (length) mm: 204
  • Engine power: 750W - 1 HP
  • Dividers: 24 positions
  • Weight without extension kg: 57
