Advantages of the KDM1100ECO wood lathe :

• Copier for reproduction of original parts or filming on a template
• Rotation speeds infinitely adjustable from 500 to 2000 rpm
• Excellent concentricity ensured by a robust precision spindle
• Quality belt drive ensuring optimum transmission of engine torque to the spindle
• Wide range of special accessories for extended use
• Ergonomic layout of the control elements at the front
• Complete standard equipment: swivel support 300 mm, mounting flange 150 mm, rotating tailstock, 4-jaw driver
• Spindle speed controller for perfect adaptation to the workpiece

Technical characteristics of the Bernardo KDM1100ECO wood lathe :

• Distance between centers: 1000 mm
• Turning diameter:
• - in guidance: 350 mm
• - in copying: 160 mm
• Spindle rotation speed, variable: 500 - 2000 rpm
• Spindle thread: M33 x 3.5 mm
• Movable headstock cone: CM 2
• Tailstock stroke: 65 mm
• Copying length: 1000 mm
• Continuous power S1 100%: 0.55 kW (1.0 hp)
• Power S6 40%: 0.75 kW (1.5 hp)
• Voltage: 230 V
• Machine dimensions (W x D x H): 1500 x 500 x 1210 mm
• Weight (approx.): 68 kg

Accessories supplied with the KDM1100ECO wood lathe :

• Adjustable support 300 mm
• 150 mm mounting flange

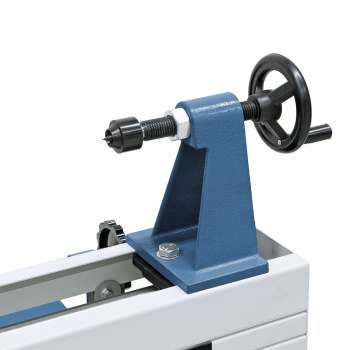

• Rotating tailstock
• 4-claw trainer
• Copier
• Speed ​​variator
• Basement
• Service tools
