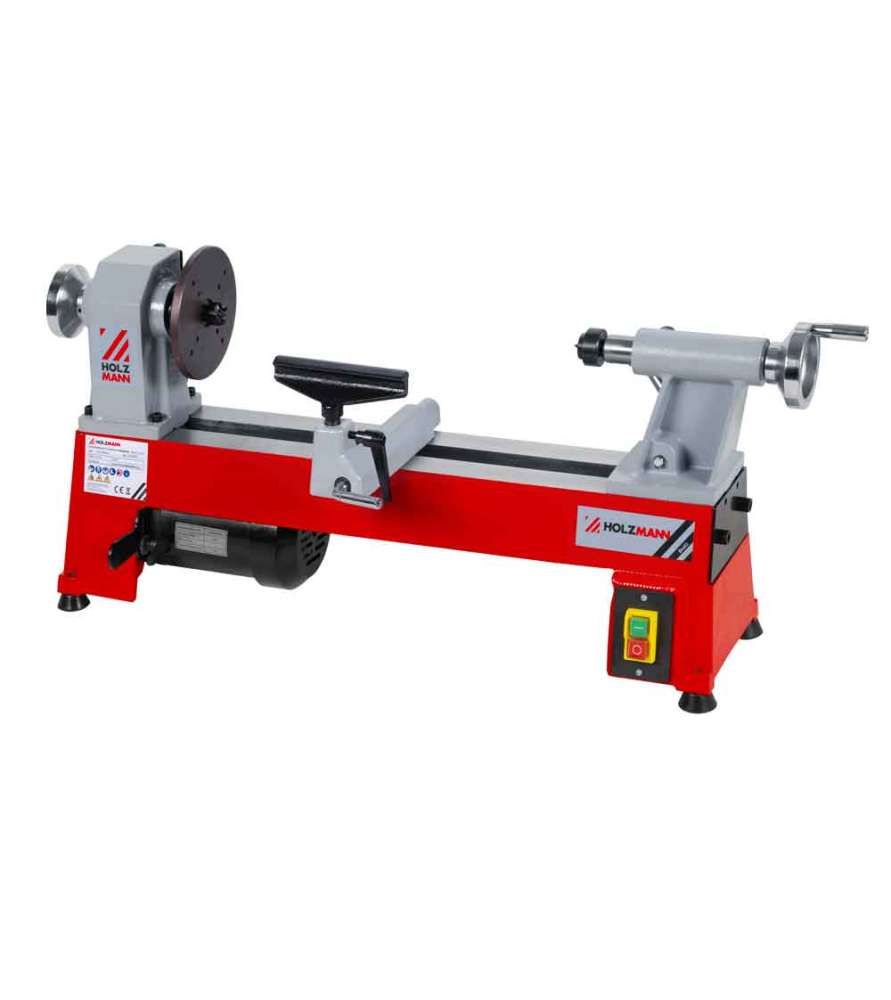

Features of the Holzmann D460 wood lathe:

• Spindle nose - Spindle taper M33-DIN800
• Bench, tailstock, tool support, and rectified cast iron head.
• CM2 tailstock, with quick adjustment.
• Smooth operation thanks to the Poly-V belt
• Tool holder, extra long 300 mm, with quick fastening.
• Large Ø145mm platform, rubber feet to reduce vibrations.
• 10mm counter shaft.
• The machine is equipped with a class B electrical filter, to avoid any electrical interference with other electronic devices.

Standard equipment

• 4-tooth drive claw
• Advanced against
• Plateau
• Support and tool holder
• Assembly tools

Technical characteristics of the Holzmann D460 wood lathe:

• turning ø: 254 mm
• 127 mm spike height
• Distance between centers mm: 460
• Spindle speed: 600/910/1340/1960/2800 rpm
• Gearbox: 5 levels
• Bit cone thread: M33
• MK2 jaw cone tailstock: 10
• Tray ø mm: 145
• Tool holder (length) mm: 300
• Motor power: 400W
• Weight without extension kg: 34

Important Probois recommendation for many woodworking machines:

Before starting, always check the inside of your machine, see if the belts are fitted correctly, tighten the bolts, etc... because the various transports cause vibrations.

Always use a 2.5² wire size extension cord

The extension cord must not exceed 10 meters and must not be rolled up

The use of drums, triplets or multi-plugs is PROHIBITED

Have a standard electricity meter with neutral and earth

Always work with a chip extractor for your health and for the guarantee of the machine

Always work with guards in place

Do not work with blunt or blunt tools as this may damage the internal mechanism.
